Remote Monitoring UPS Accessories , SNMP / AS400 Card For UPS

Minimum Order Quantity : USD10000 Packaging Details : Standard Exported Cartons and Pallets
Delivery Time : Within 15-30days after receiving your 30% TT deposit Payment Terms : 30% TT in advance, the balance before shipping
Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Nazwa handlowa: SOROTEC
Orzecznictwo: CE,ROHS,ISO9000 Model Number: SNMP Card

Szczegóły informacji

Baran: Pamięć SDRAM 64 KB Lampa błyskowa: Flash 512 KB
Protokół sieciowy: TCP / IP, UDP, SNMP itp Moc wejściowa (prąd stały): 9Volt-15Volt

opis produktu

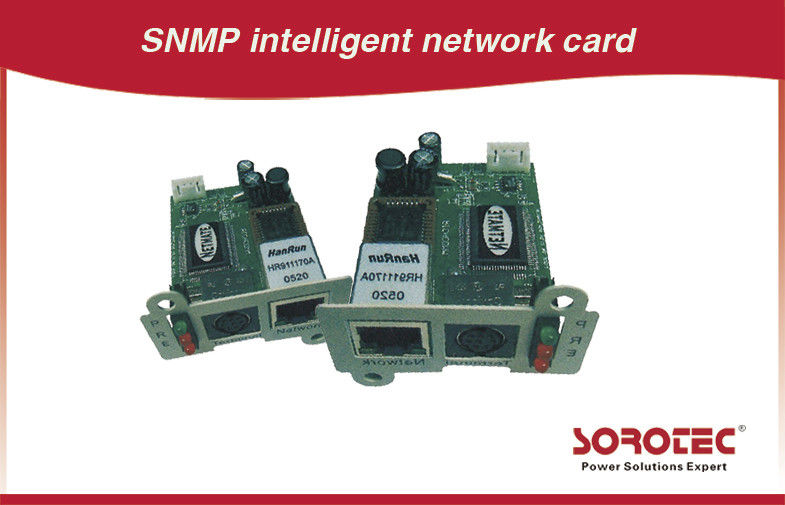

Remote Monitoring UPS Accessories , SNMP / AS400 Card For UPS


SNMP Card and AS400 Card for UPS
Apply to remote monitoring UPS in network
Reduce the cost

Function of Product:

1. Remotely monitor the status of UPS, including voltage,current, bypass, utilitypower, etc;

2. Support stand-alone monitoring;

3. Support network monitoring based on WEB;

4. Able to upgrade via network;

5. Record history event;

6. Match with IPPower software to achieve centralized monitoring and unifiedmanagement;

7. Match with IPPower software to achieve shutdown protection for client-side;

8. Support different warning such as Email warning, SMS warning, voice dialing warning, etc.




Brief Introduction:


SNMP Card basic UPS network monitor adapter, this product has the basic UPS monitoring function, the
interface is simple and easy to operate, it is a simple type UPS monitoring product which can satisfy the UPS users’ basic monitoring demands.



Features of Product:

1. Support the third party interface, easy to be integrated used by the third party(SNMP);


2. Efficient network communication mechanism, support rate report, regular time report, alarm report three mechanism, reduce the requirements for network bandwidth, at the same time, it also promotes the timeliness of the alarm;


3. Support USB port configuration function, easy for user to configure the parameters of adapter;


4. Support a key recovery factory default Settings function;


5. The system, with 3 double-color LED state light,can see various system’s work state easily;


6. Realize local monitoring by supporting the way of USB.




SNMP Card Software Interface for Monitoring:

Remote Monitoring UPS Accessories , SNMP / AS400 Card For UPS




Technical Parameters:

CPU Low-power and high-performance ARM7TDMI-S 72MHz processor
Flash 512KB Flash
Network Interface 10/100Mbps High-speed Ethernet network adaptive
Serial Port A high-speed asynchronous RS232 serial port can be used to communicate with UPS and upgrade
Browser Support Through the Internet Explorer, Netscape or compatible browser accessed directly
SNMP MIB Support MIB-II(RFC1213, RFC1315,RFC1316), PPC MIB
Network Protocol TCP/IP, UDP, SNMP, etc
Input Power (DC) 9Volt-15Volt
LED Lights Power, Status, LAN 10/100M Link/Active
Power Consumption ≤0.84W
Running Environment Temperature: 0°C~70°C Relative humidity: ≤95%
Hardware Program Update Support interface or USB two kinds of upgrading ways
System Security Provided based on IP filtering mechanism, and system operator and control of the user ID and
password protection
Safety Certificate CE, FCC, ROHS
