3 Phase 20KVA / 14KW, 15KVA /10.5KW True online double conversion High Frequency UPS
Osoba kontaktowa : Ella
Numer telefonu : 0755-81495850
WhatsApp : +8613682556888
Minimum Order Quantity : | 2pcs | Cena : | 1000USD |
---|---|---|---|
Packaging Details : | Standard Exported Cartons and Pallets | Delivery Time : | Within 15-30days after receiving your 30% TT deposit |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
Place of Origin: | China | Nazwa handlowa: | SOROTEC |
---|---|---|---|
Orzecznictwo: | CE,ROHS,ISO9000 | Model Number: | HP9335C PLUS 10-30KVA |
Szczegóły informacji |
|||
typu: | UPS online wysokiej częstotliwości | Pojemność: | 10–30 kVA |
---|---|---|---|
Fazy: | 3-fazowy | Nominalne napięcie: | 208/220/230 / 240VAC |
Współczynnik mocy wyjściowej: | 0,9 | Napięcie WEJŚCIOWE: | 110–300 V prądu przemiennego |
Praca równoległa: | Redundancja równoległa N + X | Wsparcie generatora wejściowego: | Tak |
Oszczędność energii: | Tak | Czas transferu: | 0ms |
Częstotliwość: | 50 / 60Hz | Pokaz: | Ekran LCD |
Technologia: | Technologia DSP i równoległa | Transformator izolacyjny: | Opcjonalne |
Funkcja obejścia serwisowego: | Mieć, posiadać | Pilot: | RS232, karta SNMP, USB |
aplikacji: | Centrum danych, medycyna, przemysł .etc | Usługi: | WERSJI OEM/ODM |
Próbki: | Dostępne | ||
Podkreślić: | Zasilacz awaryjny UPS,high frequency ups |
opis produktu
Reliable 30KVA High Frequency Online UPS Power Supply System with Parallel Function
Descriptions:
SOROTEC HP9335C PLUS series is a 3-phase high frequency online ups capacity from 10KVA to 30KVA,which adopts advanced DSP technology and N+X parallel redundancy technology makes the system more reliable than before and easy to achive enlarge capacity.higher power factor is 0.9 can take more loads.from line mode to battery mode only need zero transfer time.ECO mode operation for energy saving,Maintenance bypass guarantee the system more safety while maintenance.Multiple communications ports SNMP,USB,RS232 for your choosing.
Key Features:
Technical Parameter:
MODEL | HP9335C Plus 10-30KVA | ||||||||
10K | 10K-XL | 15K | 15K-XL | 20K | 20K-XL | 30K | 30K-XL | ||
CAPACITY | 10KVA / 9KW | 15KVA / 13.5KW | 20KVA / 18KW | 30KVA / 27KW | |||||
PHASE | 3 Phase with Neutral | ||||||||
INPUT | |||||||||
Voltage Range | Low Line Loss | 110 VAC(Ph-N) ± 3 % at 50% Load ; 176 VAC(Ph-N) ± 3 % at 100% Load | |||||||
Low Line Comeback | Low Line Loss Voltage + 10V | ||||||||
High Line Loss | 300 VAC(Ph-N) ± 3 % | ||||||||
High Line Comeback | High Line Loss Voltage - 10V | ||||||||
Phase | Three phase with ground | ||||||||
Power Factor | ≥ 0.99 at 100% Load | ||||||||
OUTPUT | |||||||||
Output voltage | 208/220/230/240VAC(Ph-N) | ||||||||
AC Voltage Regulation | ± 1% | ||||||||
Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system ; 56Hz ~ 64 Hz @ 60Hz system | ||||||||
Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz | ||||||||
Overload | AC mode | 100%~110%: 10min ; 110%~130%: 1min ; >130% : 1sec | |||||||
Battery mode | 100%~110%: 30sec ; 110%~130%: 10sec ; >130% : 1sec | ||||||||
Current Crest Ratio | 3:1 max | ||||||||
Harmonic Distortion | ≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load | ||||||||
Transfer Time | Line←→Battery | 0 ms | |||||||
Inverte←→Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) | ||||||||
Line←→ECO | <10 ms | ||||||||
EFFICIENCY | |||||||||
AC mode | > 89% | > 89% | > 89% | > 90% | |||||
Battery Mode | > 86% | > 88% | > 87% | > 89% | |||||
BATTERY | |||||||||
Standard Model | Type |
12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | 12 V / 9 Ah | ||||
Numbers | 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 2 x 20(18-20 adjustable) | 3 x 20(18-20 adjustable) | |||||
Recharge Time | 9 hours recover to 90% capacity | ||||||||
Charging Current | 1.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 2.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | |||||
Charging Voltage | 273 VDC ± 1% | ||||||||
Long-run Model | Type | Depending on applications | |||||||
Numbers | 18-20 | ||||||||
Charging Current | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 4.0 A ± 10% (max.) | 12.0 A ± 10% (max.) | |||||
Charging Voltage | 273 VDC ± 1% | ||||||||
PHYSICAL | |||||||||
Standard Model | Dimension,DxWxH(mm) | 832 X250X894 | 832 X250X1275 | ||||||
Long-run Model | Dimension,DxWxH(mm) | 609 X250X768 | 832 X250X828 | ||||||
ENVIRONMENT | |||||||||
Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) | ||||||||
Operation Humidity | <95 % and non-condensing | ||||||||
Operation Altitude | <1000m | ||||||||
Acoustic Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | |||||||
MANAGEMENT | |||||||||
Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC | ||||||||
USB | Power management from SNMP manager and web browser |

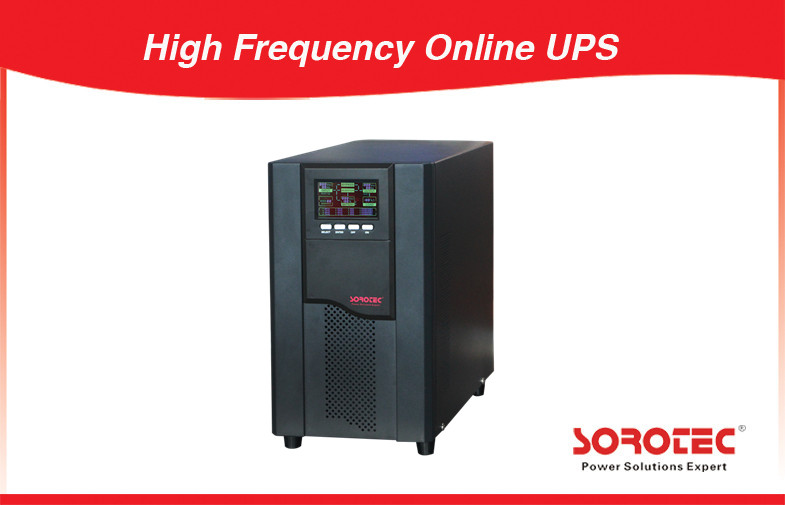

Product Picture Show:
