Modified sine wave 240VAC UPS Power Inverter IG3110E Series 600VA, 900VA, 1400VA, 1800VA
|
Szczegóły Produktu:
|
|
| Place of Origin: | China |
|---|---|
| Nazwa handlowa: | SOROTEC |
| Orzecznictwo: | CE,ROHS,ISO9000 |
| Model Number: | SSP3118C2 1-5KVA |
|
Zapłata:
|
|
| Minimum Order Quantity: | 2 |
| Packaging Details: | Standard Exported Cartons and Pallets |
| Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
|
Szczegóły informacji |
|||
| Napięcie: | 230 VAC | Zakres napięcia do wyboru: | 170-280 VAC (dla komputerów osobistych) 90-280 VAC (dla urządzeń domowych) |
|---|---|---|---|
| Zakres częstotliwości: | 50 Hz / 60 Hz (automatyczne wykrywanie) | Regulacja napięcia prądu przemiennego (tryb bat.): | 230VAC ± 5% |
| Czas transferu: | 10 ms (dla komputerów osobistych); 20 ms (dla urządzeń domowych) | Przebieg: | Czysta sinusoida |
| Maksymalna wydajność: | 98% | Pobór mocy w trybie gotowości: | 2 W. |
| Wilgotność: | 5% do 95% wilgotności względnej (bez kondensacji) | Temperatura pracy: | 0 ° C do 55 ° C |
| High Light: | solar energy inverter,home power inverter |
||
opis produktu

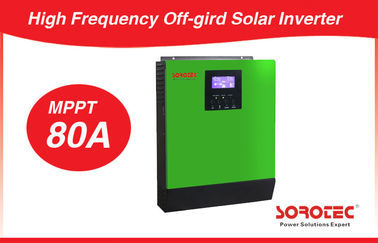

1-5KVA 80A Off-grid Solar Inverter with MPPT Solar charge controller
Key Features:
High Frequency Pure sine wave inverter/Cold start function,Remote panel available/Auto restart while AC is recovering,Overload and short circuit protection/Compatible to mains voltage or generator power/Selectable charging current based on applications/Configurable AC/Solar input priority via LCD setting/Built-in MPPT/PWM (Optional) solar charge controller/ Smart battery charger design for optimized battery performance/Parallel operation with up to 6 units only available for 4KVA/5KVA/Selectable input voltage range for home appliances and personal computers
Full protection:
Protection for low battery voltage,over load,output short circuit and over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances.
Applications:
Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
Technical Specification:
| MODEL | C2 1K-2425 | C2 2K-2425 | C2 3K-2425 | C2 4K-4880 | C2 5K-4880 | ||
| Rated Power | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 4KVA/3200W | 5KVA/4000W | ||
| INPUT | |||||||
| Voltage | 230 VAC | ||||||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | ||||||
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | ||||||
| OUTPUT | |||||||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | ||||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA | ||
| Efficiency (Peak) | 90% | 93% | |||||
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | ||||||
| Waveform | Pure sine wave | ||||||
| BATTERY | |||||||
| Battery Voltage | 24 VDC | 48 VDC | |||||
| Floating Charge Voltage | 27 VDC | 54 VDC | |||||
| Overcharge Protection | 31 VDC | 60 VDC | |||||
| SOLAR CHARGER & AC CHARGER | |||||||
| Maximum PV Array Power | 600W | 600W | 4000W | ||||
| MPPT Range @ Operating Voltage | 30 ~ 66VDC | 30 ~ 66VDC | 60VDC ~115VDC | ||||
| Maximum PV Array Open Circuit Voltage | 75VDC | 75VDC | 145 VDC | ||||
| Maximum Solar Charge Current | 25A | 25A | 80A | ||||
| Maximum AC Charge Current | 20A | 30A | 30A | 60 A | |||
| Maximum Charge Current | 25A | 30A | 30A | 140A | |||
| AC charger and solar charger can’t work at the same time. | |||||||
| Maximum Efficiency | 98% | ||||||
| Standby Power Consumption | 2 W | ||||||
| PHYSICAL | |||||||
| Dimension, D x W x H (mm) | 100 x 272 x 355 | 120 x 295 x 468 | |||||
| Net Weight (kgs) | 6.8 | 7.4 | 11.0 | ||||
| OPERATING ENVIRONMENT | |||||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||||
| Operating Temperature | 0°C to 55°C | ||||||
| Storage Temperature | -15°C to 60°C | ||||||
