400V/690V Three-Phase Balance Active Harmonic Filter APF with Compact Module Design
Szczegóły Produktu:
|
|
Place of Origin: | China |
---|---|
Nazwa handlowa: | SOROTEC |
Orzecznictwo: | CE,ISO9000 |
Model Number: | Active Harmonic Filter |
Zapłata:
|
|
Minimum Order Quantity: | 1PCS |
Packaging Details: | Standard Export Wooden Package |
Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000PCS/Month for Active Harmonic Filter |
Szczegóły informacji |
|||
Poziom hałasu: | <60dB | Filtruj wydajność: | THDi <5% |
---|---|---|---|
Kompensacja niewyważenia: | Dostępne | CT: | 150/5 ~ 10 000/5 |
Znamionowe wejście: | 400 V / 690 V (-20% - + 15%) | Ogólna wydajność: | ≥ 97% |
High Light: | three phase harmonic filter,electrical harmonic filter |
opis produktu
APF High Quality Three Phase Three Wire Active Harmonic Filter for Electricity Saving Device
AHF Operating Principle:
AHF checks the load current real time through the external CT, performs computing through the internal DSP, and then extracts the harmonic components of the load current. After that, it sends the harmonic components to the internal IGBT through PWM signals to control the inverter to generate a current with a power equal to that of the harmonic and a direction reverse to that of the harmonic. Then, it injects the current into the compensation harmonic current to implement the filtering function.
Product Descriptions of Active Harmonic Filter:
Item | |
Rated input | 400V/690V(-20%-+15%) |
Power grid frequency | 50Hz/60Hz ( range: ±10%) |
Parallel operation | Unlimited |
Overall efficiency | ≥ 97% |
Power grid structure | 3P3L, 3P4L |
CT | 150/5 ~ 10,000/5 |
Performance indicators | |
Rated capacity | 35A/50A/60A/100A/150A |
Harmonic compensation | Available |
Reactive power compensation | Available |
Unbalance compensation | Available |
Filtering range | 2 to 50 orders |
Filtering degree | Adjustable from 2 to 50 |
Filter performance | THDi< 5% |
Overall response time | < 10ms |
Target power factor | Adjustable from -1 to +1 |
Control algorithms | FFT,Intelligemt, and instantaneous reactive power |
Switching frequency | 20kHz |
Noise level | < 60dB |
Communications and monitoring capabilities | |
Communications ports | RS485,and network port |
Communications protocols | TCP/IPPMBus, Modbus, and TCP/IP |
Module display interface | Touch screen |
PC software | Optional |
Protection functions | over-valtage protection, under-voltage protection, short-circuit protection, inverter bridge inverse protection,over-compensation protection, and so on |
Fault alarm | Available, at most 500 alarm records |
Monitoring | Independent monitoring and centralized monitoring |
Mechanical properties | |
Altitude | 1% up 1500 m. Between 1500 m to 4000 m, according to GB/T3859.2, the power decreases by 1% for every additional 100 m. |
Operating temperature | -10℃ ~ +40℃ |
Relative humidity | 5% to 95%, non-condensing |
Protection class | IP20 (other IP classes are customizable.) |

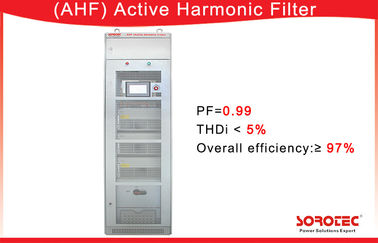

PRODUCT SHOW |
Internal Module Display:
APPLICATION OF OUR PRODUCT |
1. Living house and home building.
2. Office building, factory and warehouse.
3. Shopping mall, stadium and so on.
4. Power station, field operation and some huge engineer construction.
5. suitable for various home appliance, Office equipment,Journeys, Camping, Tents, Boat Trip.
