3000-500VA High Efficiency Pure Sine Wave Inverter for Home Equipments , 0.8 PF

Minimum Order Quantity : 1PCS Inverter ( Sample Are Available) Cena : Negotiable
Packaging Details : Standard Exported Cartons and Pallets for Power Inverters Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: Guangdong (Mainland), China Nazwa handlowa: SOROTEC
Orzecznictwo: CE,ROHS,ISO9000,ISO14000 Model Number: IG3117C 3000-5000VA

Szczegóły informacji

Product Name: High Frequency Power Inverter Capacity: 3000-5000va
Wave Form: Pure Sine Wave Output Power Factor: 0.8
Application: Home Equipments Frequency: 50/60HZ
Efficiency: 98% Dispaly: LCD Display

opis produktu

3000-500VA 230VAC 50HZ High Efficiency Pure Sine Wave Output Inverters Power Inverter



Brief Introduction:



SOROTEC IG3117 series widely used to provide long time backup power supply for home appliances such as personal computer,fridge,air-conditional,electric fan,DVD,TV.etc,there are one LCD and one Power Switch on front panel.





Key  Features:

High Efficiency 98% Pure Sine Wave Solar Inverter
High frequency switching technology for compact size and light weight

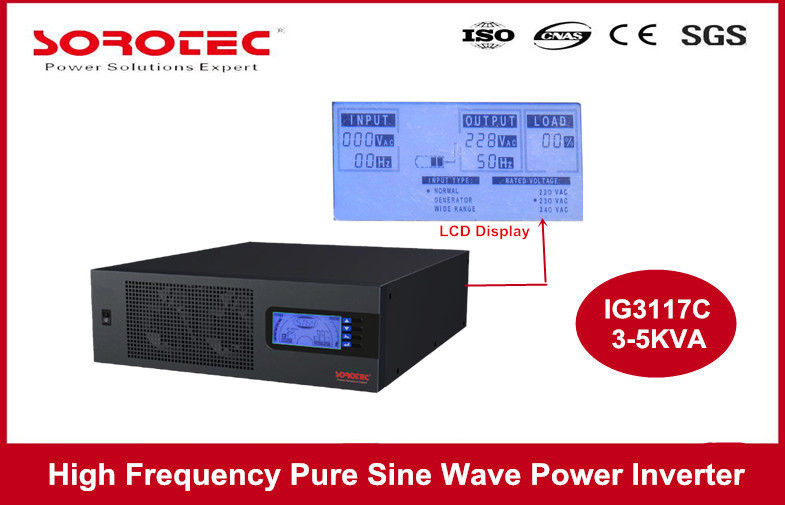

LCD Display, Pure sinewave output

Standard Output power factor 0.8
High efficient DC to AC conversion minimizing energy loss
Supporting home appliance/ office equipments / Lighting Equipments / Moto-Based Equipment
Solar, wind, hydro, Generator

High efficiency light weight small size and low noise





Pure Sine Wave Output Inverters Power Inverter:





MODEL IG3117C 3000VA-5000VA
Capacity 3000VA/2400W 5000VA/4000W
Nominal Voltage 230VAC
Nominal Frequency 50HZ/60Hz
Input
Voltage Range 170VAC ~270VAC(Normal range)
91~284VAC(generator/wide range)
Frequency range 40HZ±1Hz ~65Hz±1Hz
Output
Voltage Regulation 230VAC±10%
Frequency Regulation 50HZ/60Hz±1Hz(Auto detection)
Wave Form Pure sine wave
Power Factor 0.8
Efficiency ≥90%(battery mode)
≥98%(line mode)
Over-load Protection At 110%-150% Load For 10s
Load >150% For 5s
Surge Rating 10000VA
Transfer time 10ms
Battery
DC voltage 24Vor48vdc 48Vor96vdc
Nominal charge current 20A(95-175V,gen/wide,only)
20/35A(Optional)
Overcharge protection Bat. V≥60Vdc,Fault, Buzzer alarm
Safety & Working Environment
Safety Certification CE(EN60950)
EMI Classification EN62040-2, CLASS A
Operating Temperature Range 0℃ to 45℃
Storage temperature –15℃ to 60℃
Altitude 0 - 1500 Meters
Relative humidity 5% to 95% non-condensing
Audible noise 60dB max
Cooling Forced air , variable speed fan
Dimension 350*110*407 350*110*407
Weight 8KG 9KG





Protect  Function:

1. Inverter output protect

2. Charge input protect

3. over load protect

4. Over temperature protect

5. short circuit protect

6. Over charge protect

7. Battery over voltage protect

3000-500VA High Efficiency Pure Sine Wave Inverter for Home Equipments , 0.8 PF

Introduction of Company

Shenzhen SORO Electronics Co., Ltd is a professional UPS and inverter manufacturer in the field of power electronics for 13 years. We have two large production UPS sites, Zhejiang and Shenzhen. We have own our SMT department. SORO UPS has been a leading enterprise in the UPS industry in China.

Since established, The company has carried out three strategies: operation innovation strategy, people-oriented strategy , technical guidance strategy, and implemented strict scientific management with full-fledged quality management system. The company invests 10% of its annual revenue in researching and development every year. We had international advanced equipments for developing , testing and producing. SORO UPS invited the best technical elites at home, meanwhile, the company established perfect cooperation relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.



QC Control

The company ranks first in passing the ISO9001 international quality system certification.We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC), CUL,FCC.



Best Partner

We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran and so on .We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
