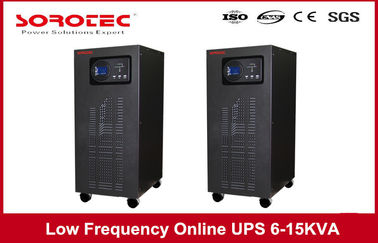

50/60HZ Frequency Low Frequency Online UPS Switch For Bank Mini Office System , 6 - 15 KVA

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: SOROTEC
Orzecznictwo: CE,ROHS,ISO9000
Model Number: GP9111C 6 - 15KVA
Zapłata:
Minimum Order Quantity: 5
Cena: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS

Szczegóły informacji

Częstotliwość znamionowa: 50 / 60Hz Zakres częstotliwości: 50/60 HZ ± 10%
Miękka warstwa: 0-100% 5 sek Współczynnik mocy: 0,8 (opóźnione)
Dokładność częstotliwości: 50/60 Hz ± 0,05 Hz (moc baterii) Alarm: Alarm dźwiękowy i świetlny
Hałas: 60–65dB Pracy: Temperatura: 0–40 ℃ Wilgotność względna: 0–90%
Napięcie nominalne: 220/230 / 240VAC i 380/400 / 415VAC
High Light:

uninterruptable power supply

,

remote control ups

opis produktu

Low Frequency Online UPS Switch for Bank Mini Office System 6 - 15 kVA



Technical Specifications of Online UPS GP9111C GP9311C Series:

Model GP9111C 6-15KVA GP9311C10-40KVA
6KVA 8KVA 10KVA 15KVA 10KVA 15KVA 20KVA 30KVA 40KA
Capacity

6KVA/

4.8KW

8KVA

/6.4KW

10KVA

/8KW

15KVA

/12KW

10KVA

/8KW

15KVA

/12KW

20KVA

/16KW

30KVA

/24KW

40KA

/32KW

Rated voltage 220V single phase 380V three phase 4 wires+G
Rated frequency 50/60HZ
AC input
Voltage range 220V±25% single phase 380V±25% three phase 4 wires + G
Frequency range 50/60HZ±5%
Soft strat 0-100% 5sec
Power factor >0.92(with input filter)
Bypass input
Voltage range 220V±25% single phase 380V±25% three phase 4 wires + G
Frequency range 50/60HZ±10%
Inverter bypass (overload)0ms
Output
Voltage accuracy 220V±1%(steady-state load), 220V±3%(load fluctuations)
Frequency accuracy 50/60Hz±0.05Hz(battery power)
Power factor 0.8(lagging)
Distortion <3%(linear load), <5%(non linear load)
Steady-state response time <10ms
Overload capacity 110%load can run normally;125%10min;150%1min;
battery
Nominal voltage 192V 360V
Float voltage 216V 405V
Cut-off voltage 168V 315V
Charger current 1A-50A(According to the battery capacity can be set configuration)
Other
Display LEDLCD
Alarm Sound and light alarm
Protection UPS over current, short circuit, under voltage, over temperature
Environment
Noise 60-65dB
Operating Temperature:0-40℃ Relative humidity :0-90%
Box color Gray (optional)
Physical
Wight
(KG)
Net 122 125 143 175 182.5 235.5 285.5 354.8 354.8
Gross 142 147 163 199 225.5 268.5 325.2 389.5 389.5

Dimensions:

W×D×Hmm)

210×600×560 305×586×850 350×675×920 430×792×1060

Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2 GB/17626.2~5/IEC61000-4-2~5 SAFETY:GB4943

Note: Product specifications are subject to change without further notice



Key Features:

1.Intelligent battery management, extending the battery life.



2.Suitable for all kinds of loads, and a high overload capacity.



3.Large LCD display in Chinese and English human-machine interface.


4.1ph in/1ph out or 3ph in/1ph out, support 380/400/415V, 50/60Hz power system.


5. Pure-online double conversion technology, to provide the best quality of power supply.



Applications:

IDC data exchange center medium-sized rooms, medium-scale network management systems, billing center, banking / securities clearing centers, industrial process control, traffic control areas......
