IP21 Protection Large LCD Uninterruptible Power Source UPS 20KVA 16KW for Telecom

Minimum Order Quantity : 10000 PCS UPS Cena : 10000USD
Packaging Details : Standard Exported Cartons and Pallets For Uninterrupted Power Supply UPS Delivery Time : Within 15-30days after receiving your 30% TT deposit
Payment Terms : 30% TT in advance, the balance before shipping Supply Ability : 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Place of Origin: China Nazwa handlowa: SOROTEC
Orzecznictwo: CE,ROHS,ISO9000 Model Number: HP9330C 20-80KVA Online UPS

Szczegóły informacji

Nazwa produktu: UPS online Pojemność: 20–80 kVA
Pokaz: LCD Częstotliwość: 50 / 60Hz
Przebieg: UPS Pure Sine Wave Aplikacje: UPS telekomunikacyjny
Inteligentny interfejs: RS232 / RS485, Inteligentne gniazdo, EPO Funkcja równoległa: 8 jednostek UPS Do pracy równoległej

opis produktu



IP21 Protection Large LCD Uninterruptible Power Source UPS 20KVA 16KW for Telecom



Key Features:



SOROTEC HP9330C series 3Ph in/3Ph out High Frequency Online UPS Power System,capacity from 20kva to 80kve,adopta advanced IGBT Rectifier technology,Input power factor: 0.99.Input THDi < 3%,the efficiency of the machines is as high as 94%.



SOROTEC HP9330C series Connect up to 8 units in parallel for maximum flexibility ,compatible to battery share in the parallel mode , which helps the customer to extend the system capacity with lowcost.Intelligent management of battery charging and discharging.Twin-channel line input.Large LCD Graphical displaypanel , convenient for operation.



SOROTEC HP9330C series widely application in provide reliable and long time backup uninterrupted power supply for personal computers, medical, telecom, local areas network,labs,servers,e-business and so on precision equipments.



HP9330C Series UPS represents the best solution that is both cost effective and environmental friendly,it delivers excellent integrated automatically,reduced footprint and optimum input and output performances,guaranteeing reliable and flexible power.



Technical Specification of High Frequency Online UPS 20-80KVA

Model HP9330C 20-80KVA
20K 20K-XL 30K 30K-XL 40K 40K-XL 60K-XL ISO 80K-XL ISO
Rated Capacity

20KVA/

16KW

30KVA/

24KW

40KVA/

32KW

60KVA/

48KW

80KVA

/64KW

Rated Voltage 380/400/415VAC; 3-phase+N+G
Rated Frequency 50/60HZ
Input
Voltage Range 380VAC±25%
Frequency Range 50/60HZ±5%
Wiring Twin- channel line input
THDI <3%
Power Factor >0.99
Output
Voltage Precision 380 X (1±1%)VAC; 3-phase+N+G
Frequency Precision 50/60HZ±0.2%
Power Factor 0.8
Current Crest Ratio 3∶1
Overload Capacity ≤110%for 60 minutes;≤125% for 10min;≤150% for 1min;
Battery
Charging Current 0.5~4.5A(adjustable)
Charging Current 7mins
Quantity 28/30/32(selective);compatible to battery share in the parallel mode
Efficiency
  94%
Line mode/BAT mode 98%
ECO mode I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value,
fault display, fault, warning
Indication
LCD
Communications
Communication Interface

RS232,AS400,RS485,Service,EPO,BAT temperature compensation,Intelligent Slot ,

SNMP(Option)

Operation Environment
Temperature 0℃~40℃
Humidity 0 95% (Non-condensing)
Storage Temperature -25℃ 55℃
A 1000 m ≤1000m
Physics Characteristic
Weight
(KG)
N.W 158 82 220 110 224 114 282 306
G.W 198 122 270 160 274 164 356 380
Dimensions : ( Wx D x H )mm

420X600X

1250

420X600X

950

470X700X

1750

470X700X

1150

470X700X

1750

470X700X

1150

600X800X

1850

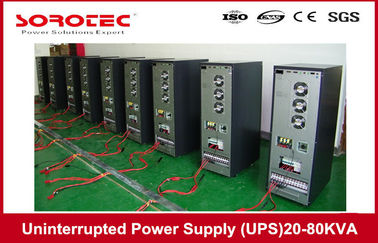

Product Show

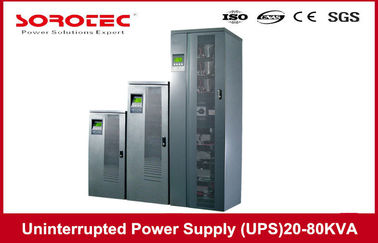

IP21 Protection Large LCD Uninterruptible Power Source UPS 20KVA 16KW for Telecom
