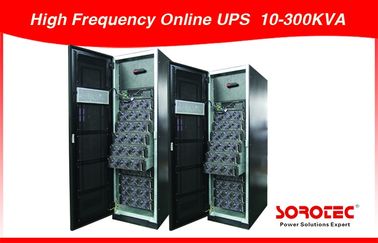

High Frequency Three Phase Modular uninterrupted power supplies 10kva - 300kva

Minimum Order Quantity : 1pcs Cena : 1-5000 USD
Packaging Details : Wooden Packing Delivery Time : 15-30days after receiving your 30% TT deposit
Payment Terms : L/C, T/T, Western Union Supply Ability : 5000PCS Per Month
Place of Origin: China Nazwa handlowa: SOROTEC /OEM
Orzecznictwo: CE,ROHS,RSO9000 Model Number: MPS9335C 10-300KVA Modular UPS

Szczegóły informacji

Nazwa produktu: Modułowy UPS typu: UPS online wysokiej częstotliwości
Zasilacz UPS: Duża moc Fazy: 3-fazowy, 4-przewodowy
Kształt fali: Czysta sinusoida Pojemność: 10–300 kva
Współczynnik mocy wyjściowej: 1.0 Napięcie wejściowe sieci: 380/400 / 415vac
Praca równoległa: 4 jednostki UPS Struktura modułowa: Wymienialne podczas pracy
Czas transferu: 0ms aplikacji: Przemysł
Usługi: Produkty OEM / ODM

opis produktu



High Frequency Three Phase Modular uninterrupted power supplies 10kva - 300kva







Application:

IDC(Internet Data Center), computing center, ISP (Internet Service Provider ),Telecom,Finance bank and securities, Tax, hospital system, industrial automation, precision equipment, etc.











Features:

  • Superior energy saving and environment-friendly
  •
  • Superior capability of powering load
  •
  • Easy-to-install,maintain  and modify
  •
  • 6-inch extra large LCD that can display 12 type languages(Chinese ,English ,Russian, French ,Spanlish and so on)
  •
  • Provide large LCD touch screen (optional)
  •
  • Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
  •
  • On-Line Double Conversion design

High Frequency Three Phase Modular uninterrupted power supplies 10kva - 300kva





  • Fully isolating the influences of power grid pollution and power failure from utility power supply and diesel generator to load
  •
  • Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
  •
  • Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
  •
  • Digital load sharing technology features extra low cross current and extreme high system reliability in parallel operation
  •
  • Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
  •
  •  Extra strong capability to withstand output overload and short circuit, ensuring the system stability and system safety at limit conditions
  •
  • Intelligent battery management maintains battery automatically to prolong the battery life
  •
  • Efficient heat dissipation and effective protection under severe environment due to its independent layer-sealed ventilation channel and redundant fan design, as well as the paint-protected circuit boards and built-in dust filter
  •
  • Applicable voltage south America



High Frequency Three Phase Modular uninterrupted power supplies 10kva - 300kva



Technical Specifications of SOROTEC MPS9335C Series High Frequency Online UPS 10-300KVA:



Model MPS9335 30-150KVA
Capacity 30-150KVA
Main input
Input voltage 380V/400V/415AC(Optional South America 208v)
Input Frequency Range 50/60Hz
Power Factor Full load>0.99 ,Half load >0. 98
THDi THDi <3%
Input power soft-start fantion 5-30s settable
Input Voltage Ranges 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40%
Frequency Range 40-70Hz
Battery
Battery Voltage ±240VDC(Default),12V Battery30-40pcs can be choose
Charge Voltage accuracy ± 1%
Bypass
Bypass Input voltage 380/400/415VAC 3-phase 4-wire
Voltage Ranges Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set viasoftware
Overload Capacity 150%,long term operation,150%<load<180%,more than 1 hour ,load>1000% 100ms
Output
Inverter Output Voltage 380/400/415VAC 3-phase 4-wire
Voltage Accuracy ± 0.5%(balanced load), ± 1% (unbalanced load)
THDV THDV<1%(linear load), THDV<3%(nonlinear load)
Power Factor 1
Three Phase Angle accuracy 120°c ± 0.5°c
Current Crest Ratio 3:1
Overload Capacity 110%1h,125%10mins,150%1mins,>150%200ms
Transfer Time 0ms,15ms(ECO Mode)
System
Frequency 50Hz/60Hz (Settable)
Mains synchronization range ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
Protection Level IP41/IP42
Communication Ports RS232,RS485,dry contact,SNMP card,EPO,generator port
System efficiency > 96% at load above 50%, >95% at load above 25%
Operation Temperature 0-40 °c
Storage Temperature -25 °c -70 °c (without battery)
Humidity 0-95%(no-condensing)
Noise(dB) 55-62dB,Adjusted with load
Weight 5 module cabinet module :RMS050/10, RMS100/20, RMS150/30 150KG
10 module cabinet module :RMS100/10, RMS200/20, RMS300/30 180KG
module :PM10 10KVA power module :28KG
module :PM20 20KVA power module :30KG
module :PM30 30KVA power module :35KG
Dimendion(W XD XH)mm 5 module cabinet 600X1400X850
10 module cabinet 600X2070X850
power module 440X132X660(10KVA/20KVA/30KVA)
