Integration Outdoor Battery Cabinet Telecom Base Station Mini-shelter
|
Szczegóły Produktu:
|
|
| Place of Origin: | China |
|---|---|
| Nazwa handlowa: | SOROTEC |
| Orzecznictwo: | CE,ROHS,ISO9000 |
| Model Number: | Outdoor Battery Cabinet |
|
Zapłata:
|
|
| Minimum Order Quantity: | USD10000 |
| Packaging Details: | Standard Exported Cartons and Pallets |
| Delivery Time: | Within 15-30days after receiving your 30% TT deposit |
| Payment Terms: | 30% TT in advance, the balance before shipping |
| Supply Ability: | 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS |
|
Szczegóły informacji |
|||
| typu: | Szafa bateryjna UPS | Poziom ochrony: | IP44 |
|---|---|---|---|
| Temperatury: | -10 - + 45 ° C | materiał: | SMC / Stainless |
| Napięcie nominalne: | 220/230 / 240VAC | Częstotliwość nominalna: | 50 Hz / 60 Hz |
| Zakres napięcia: | 115 ~ 295 VAC (± 3 VAC) | Zakres częstotliwości: | 50 Hz: (46 Hz ~ 54 Hz); 60 Hz: (56 Hz ~ 6 Hz) |
| Miękki start: | 0 ~ 100% 5 sek | Współczynnik mocy: | 0,98 |
| Precyzja napięcia: | 223/230/240x (1 ± 2%) | ||
| High Light: | outdoor electrical enclosure,metal electronic enclosures |
||
opis produktu

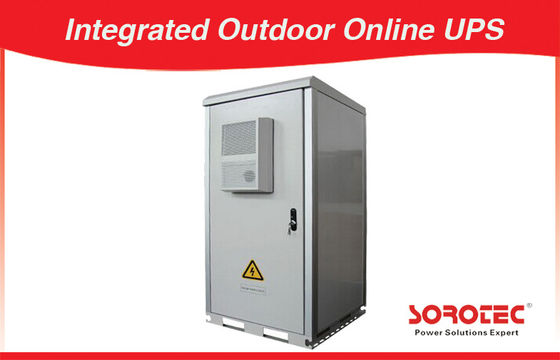

Mini- Shelter Outdoor Battery Cabinet With Temperature Controlled ,
UPS Battery Cabinet
Specifications:
1.Reliable in performance and convenient to move.
2.UPS Battery Cabinet
3.outside cabinet
outside Battery Cabinet:
outdoor cabinet is the high protection grade battery cabinet specialized for the outdoor base station power supply facilities. The system integrate of Intelligent temperature controlled ventilation system,heater and reserve battery installation space. The high protection grade battery cabinet and the advanced temperature control design guarantee the reliable operation of the system in the outdoor environment
Advantages and Characteristics:
1.Wide working temperature range:-10--+45°C( Southern type),-40--+45°C(Northern type)
2. The battery warehouse space: two groups reserved battery installation space, each group capacity biggest to 150AH
3.Easy maintenance: completely front-side operation and maintenance
4.Easy to install: suitable for the ground,platform of roof,the tower platform etc
5. Protection level: IP44 , effectively separated from external factor, guarantee equipment can operate reliably
6. Intelligent ventilation system: effectively reduce the system consumption
7. Security design: with the intelligent entrance guard alarm function and strong prevention of burglary module
Technical Specifications:
| Model | HW9110E 1-10KVA | ||||||||||
| 1KVA | 2KVA | 3KVA | 6KVA | 10KVA | |||||||
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/.1KW | 6KVA/4.2KW | 10KVA/7KW | ||||||
| Nominal Voltage | 220/230/240VAC | ||||||||||
| Nominal Frequency | 50HZ/60HZ | ||||||||||
| Input | |||||||||||
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) | |||||||||
| Frequency Range | 50HZ:(46HZ~54HZ); 60HZ:(56HZ~6HZ) | ||||||||||
| Soft Start | 0~100% 5sec | ||||||||||
| Power Factor | 0.98 | ||||||||||
| Output | |||||||||||
| Voltage Precision | 223/230/240x(1±2%) | ||||||||||
| Frequency Precision | 50/60HZ±0.05HZ | ||||||||||
| Power Factor | 0.7/0.8(Optional) Standard 0.7 | ||||||||||
| Wave Distortion | Linear load<3% Non-linear<6% | ||||||||||
| Overload Capability | Overload(110%~150%)for 30 seconds,then automatically transfer to bypass.when load is normal,it can automatically transfer to normal mode. | ||||||||||
| Crest Factor | 3:1 | ||||||||||
| Transfer Time | 0MS(AC to DC) | ||||||||||
| Battery | |||||||||||
| DC Supply Voltage | 36VDC | 96VDC | 96VDC | 240VDC | 240VDC | ||||||
| Charge Current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A | ||||||
| Internal Battery Caoacity | (38/65/80/100AH)optional | ||||||||||
| Panel Displsy | |||||||||||
| LED | Load level/Battery level,Battry indicator,Unility Power,Bypass,Overload,Fault | ||||||||||
| Communications | |||||||||||
| Communicate Interface | RS232,SNMP Card(optional) | ||||||||||
| Work Environment | |||||||||||
| Temperature | -40° C~50° C | ||||||||||
| Humidity | 0~95%(Non-condensing) | ||||||||||
| Storage Temperature | -25° C~55° C | ||||||||||
| Elevation | <1500m | ||||||||||
| Physical Characterisstics | |||||||||||
| Weight(KG) | N.W | 85 | 125 | 125 | 150 | 155 | |||||
| Dimensions(WxDxH)mm | 613x60x954 | 650x753x1227 | 650x753x1227 | 940x940x1770 | 940x90x1770 | ||||||
